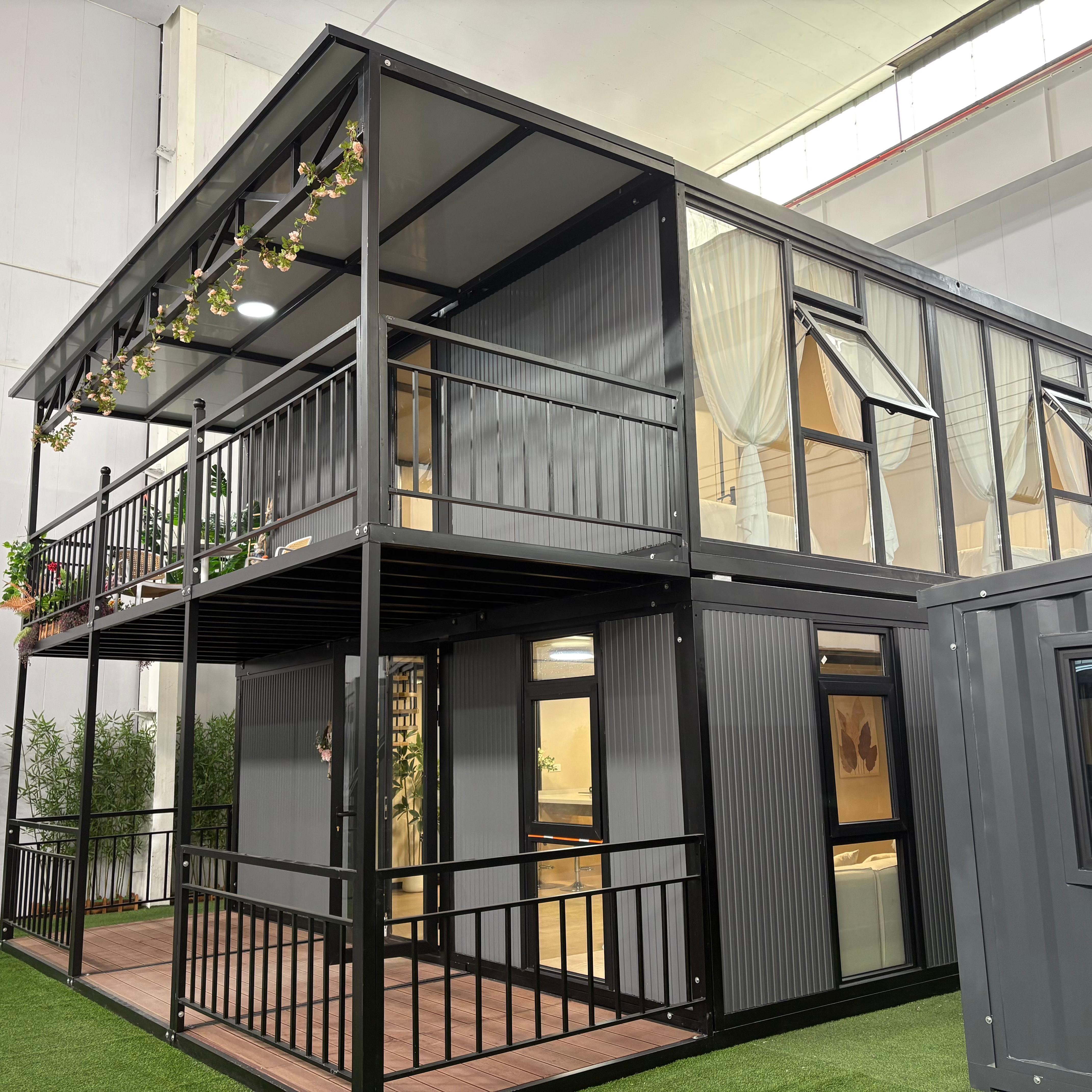

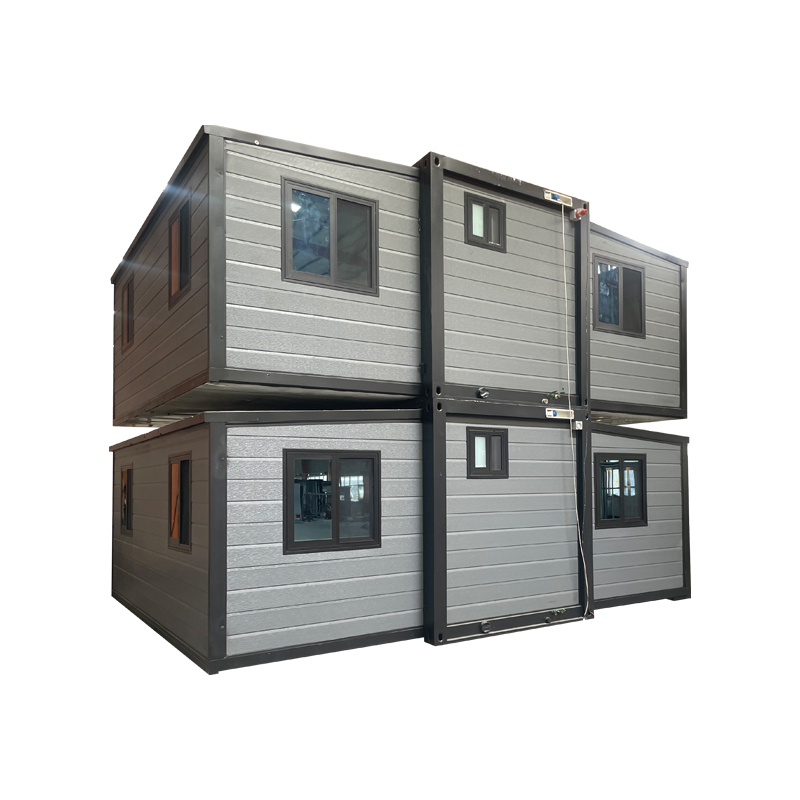

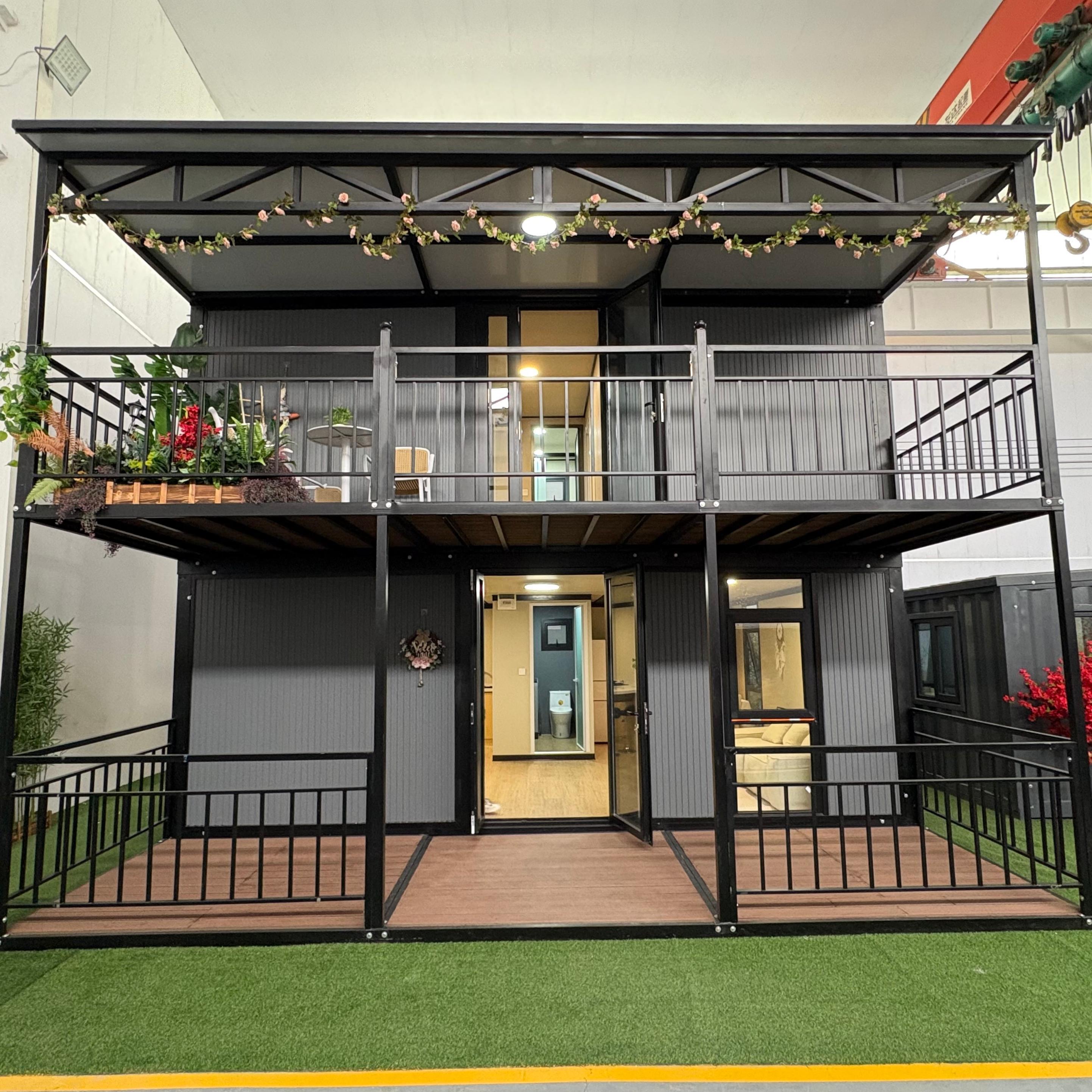

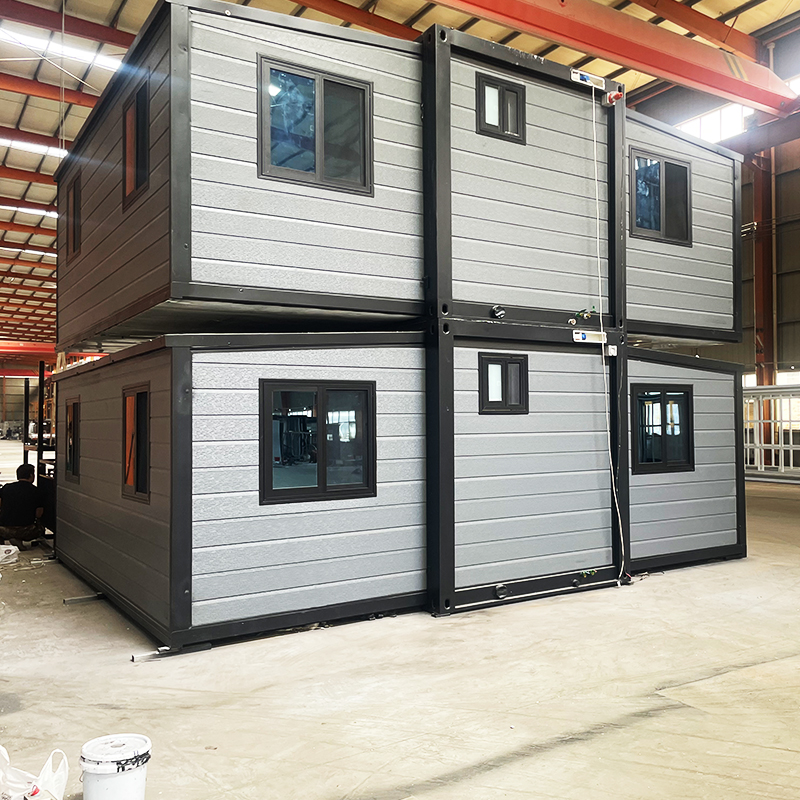

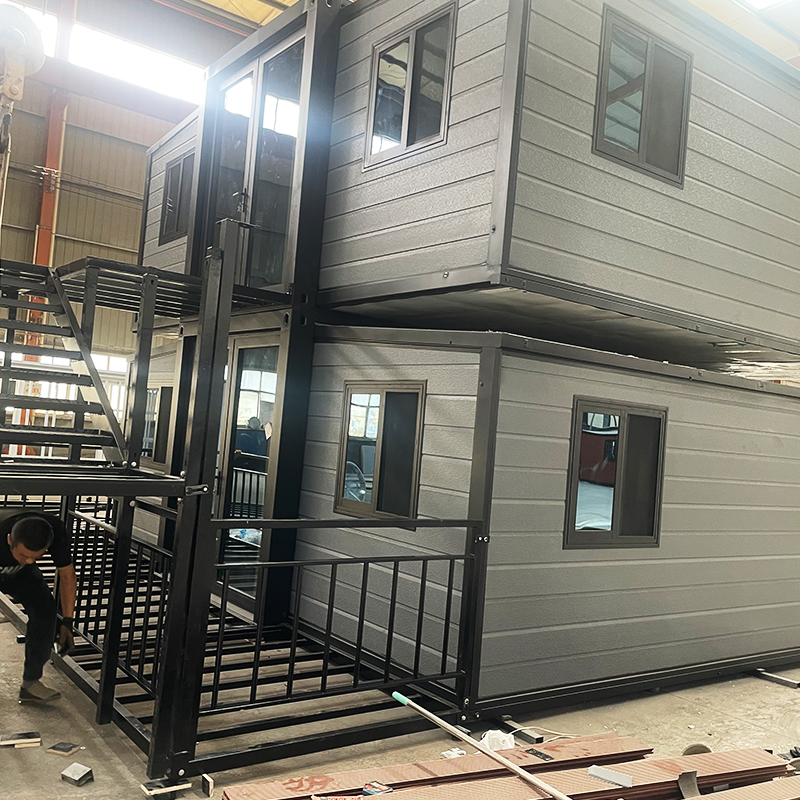

EXPANSION CONTAINER HOUSE, ALSO KNOWN AS DOUBLE-WING EXPANSION HOUSE, uses a light steel hot-dip galvanized frame as a supporting structure to ensure the stability and safety of the overall structure.
The exterior is covered with environmentally friendly composite panels, which are both lightweight and have good insulation, thermal and acoustic insulation properties.
As a kind of detachable and movable modular house, the double wing expansion box room is made of high-strength materials and advanced insulation technology, which is both safe and durable. With solar panels and a wind power system, the Wings Expansion Box can meet your daily energy needs, allowing you to enjoy a comfortable life while also contributing to environmental protection.
| Specification Category | Technical Details | |
|---|---|---|
| BASIC FEATURE (20FT) | EXTERNAL DIMENSION (MM) | 5900*6320*2480 |
| FOLDING STATE (MM) | 5900*2200*2480 | |
| TOTAL MASS (KG) | 2900 | |
| BASIC FEATURE (40FT) | EXTERNAL DIMENSION (MM) | 11800*6320*2480 |
| FOLDING STATE (MM) | 11800*2200*2480 | |
| TOTAL MASS (KG) | 4700 | |
| OTHER SIZE | CUSTOMIZED ACCORDING TO REQUIREMENTS | |
| FRAME STRUCTURE | STEEL STRUCTURE | Q235 GALVANIZED STEEL FRAME |
| MIDDLE ROOF BEAM | Q235 GALVANIZED STEEL FRAME (2.5-3MM) | |
| MIDDLE BASE BEAM | Q235 GALVANIZED STEEL FRAME (2.5-3MM) | |
| SIDE BEAM | Q235 GALVANIZED STEEL FRAME (1.5-2MM) | |
| SIDE WALL FRAME | Q235 GALVANIZED STEEL FRAME (1.5-2MM) | |
| MIDDLE PILLAR | Q235 GALVANIZED STEEL FRAME (2.5-3MM) | |
| SUB-FRAME | Q235 GALVANIZED STEEL FRAME (1.5-2MM) | |
| PROTECTIVE COATING | ELECTROSTATIC SPRAYING / WHITE PLASTIC POWDER SPRAYING | |
| TOP OF CONTAINER | EXTERNAL ROOF BOARD | FIREPROOF AND FLAME-RETARDANT EPS INSULATED SANDWICH PANEL & ROOF CORRUGATED VENEER |
| INTERNAL CEILING BOARD | 0.25 TYPE-200 CEILING | |
| WALL PANEL | HEAT PRESERVATION | 50MM FIREPROOF AND FLAME-RETARDANT INSULATION SANDWICH PANEL / COLOR STEEL PLATE WITH GLASS FILAMENT COTTON |
| SIDE, FRONT & BACK WALLS | 65MM FIREPROOF AND FLAME-RETARDANT INSULATION SANDWICH PANEL / COLOR STEEL PLATE WITH GLASS FILAMENT COTTON | |
| INTERNAL PARTITION | 55M ENVIRONMENTALLY FRIENDLY INSULATION MATERIALS | |
| FLOOR | MIDDLE FLOOR | 18MM FIREPROOF GLASS MAGNESIUM BOARD / FIREPROOF CEMENT FIBER FLOORING |
| FLOOR ON BOTH SIDES | 18MM BAMBOO FLOORING / THICK BAMBOO PLYWOOD | |
| ELECTRICAL SYSTEM | ELECTRICAL WIRING INSTALLED IN ACCORDANCE WITH MOISTURE-PROOF SPECIFICATIONS. INDOOR: 2 LED LIGHTS, 2 CEILING LAMPS, 3 FIVE-HOLE SINGLE SOCKETS, 1 SINGLE SWITCH, 3 TEN-HOLE SOCKETS, 1 AIR CONDITIONER SOCKET, 1 20A-LEAKAGE PROTECTOR. VOLTAGE 220V, 50HZ. | |
| CIRCUITS CAN BE CUSTOMIZED TO MEET CERTIFICATION REQUIREMENTS OF DIFFERENT COUNTRIES. | ||
| DOOR | BROKEN BRIDGE ALUMINUM ENTRANCE DOOR (WITH PASSWORD LOCK), BEDROOM METAL SWING DOOR | |
| WINDOWS | ALUMINUM ALLOY WINDOWS, DOUBLE-LAYER INSULATED TEMPERED GLASS | |
The wall surface can choose a variety of patterns, such as camouflage, wood grain, brick grain, including a variety of bionic natural colors for you to choose. Alternatively, you can provide your requirements and we can customize it for you.

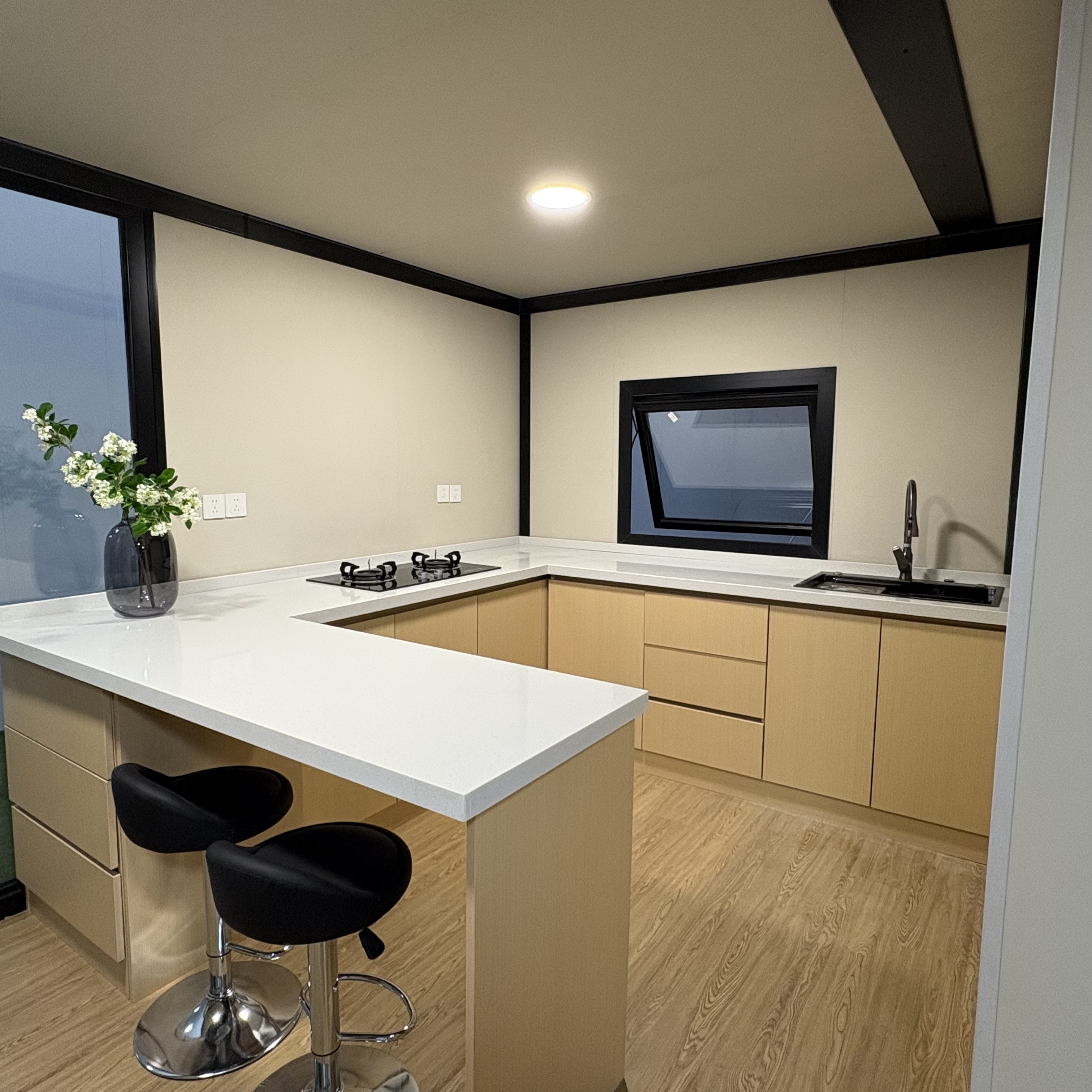

For the ground, we generally use 18mm thick cement fiberboard, which is of excellent quality and not easy to crack, to ensure the safety of the container room and improve the durability of use. Floor decoration is commonly floor leather, with customizable color options, or it can be replaced with different wood floor options based on your needs.

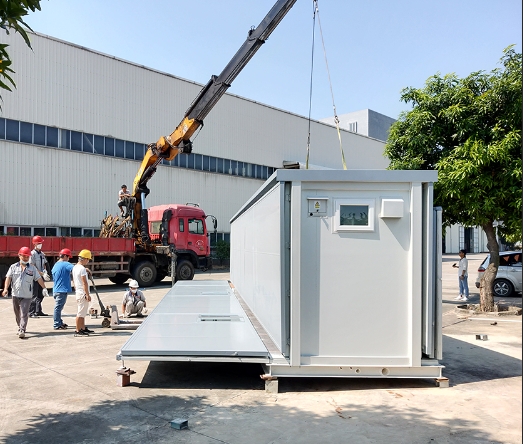

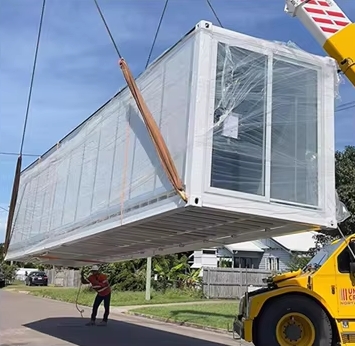

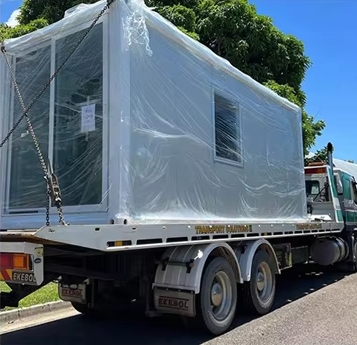

We will provide waterproof sealed packaging for each folding house at the factory to ensure its integrity and cleanliness during transportation, and strictly follow the sea freight packaging requirements for final container loading.
Our products are exported to various countries in the world, and we can make products that meet the import standards of various countries. We have reached friendly partnerships with leading enterprises across multiple countries. The product quality is high, backed by a variety of certificates, and we have participated in various major international exhibitions, building strong relationships with our clients globally.
