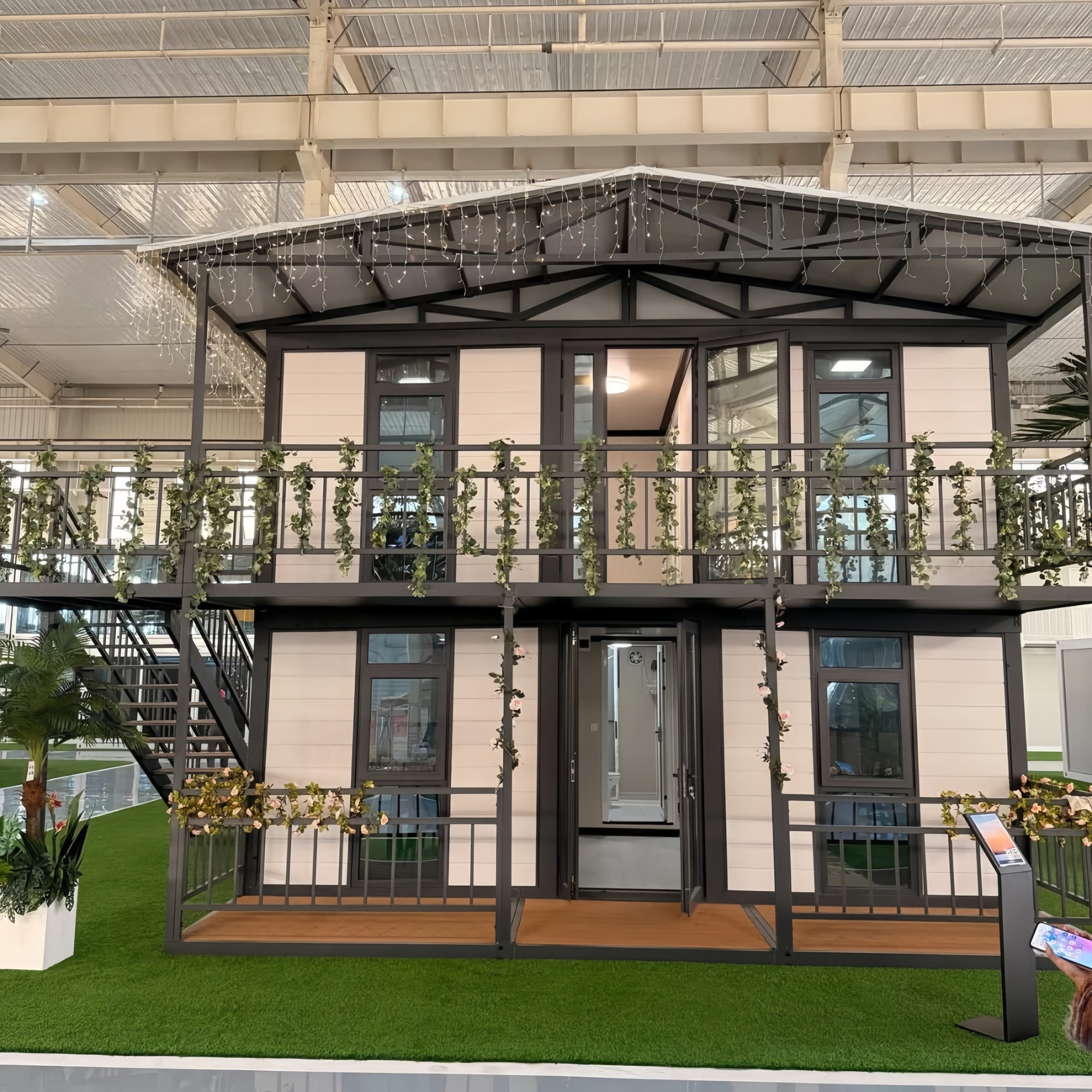

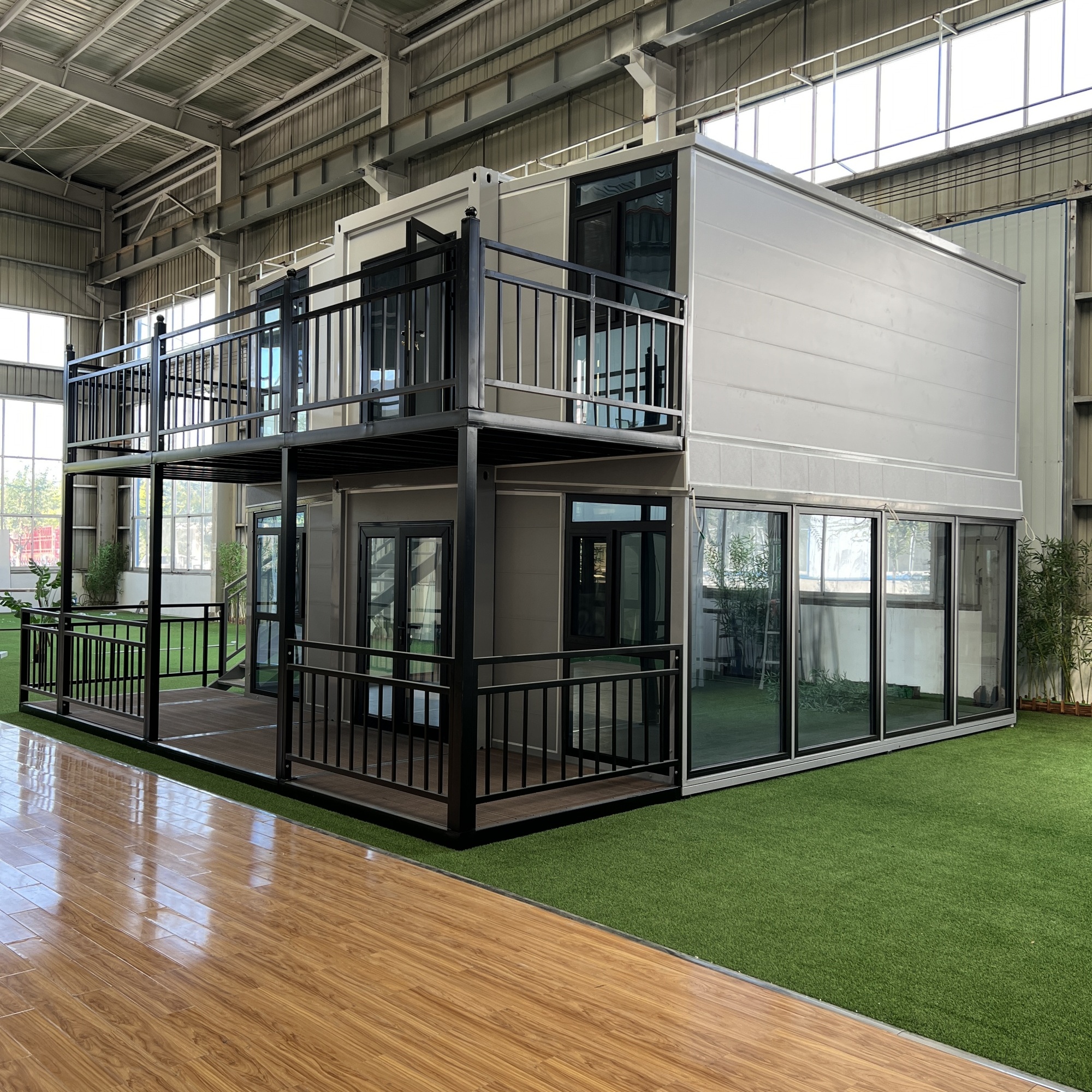

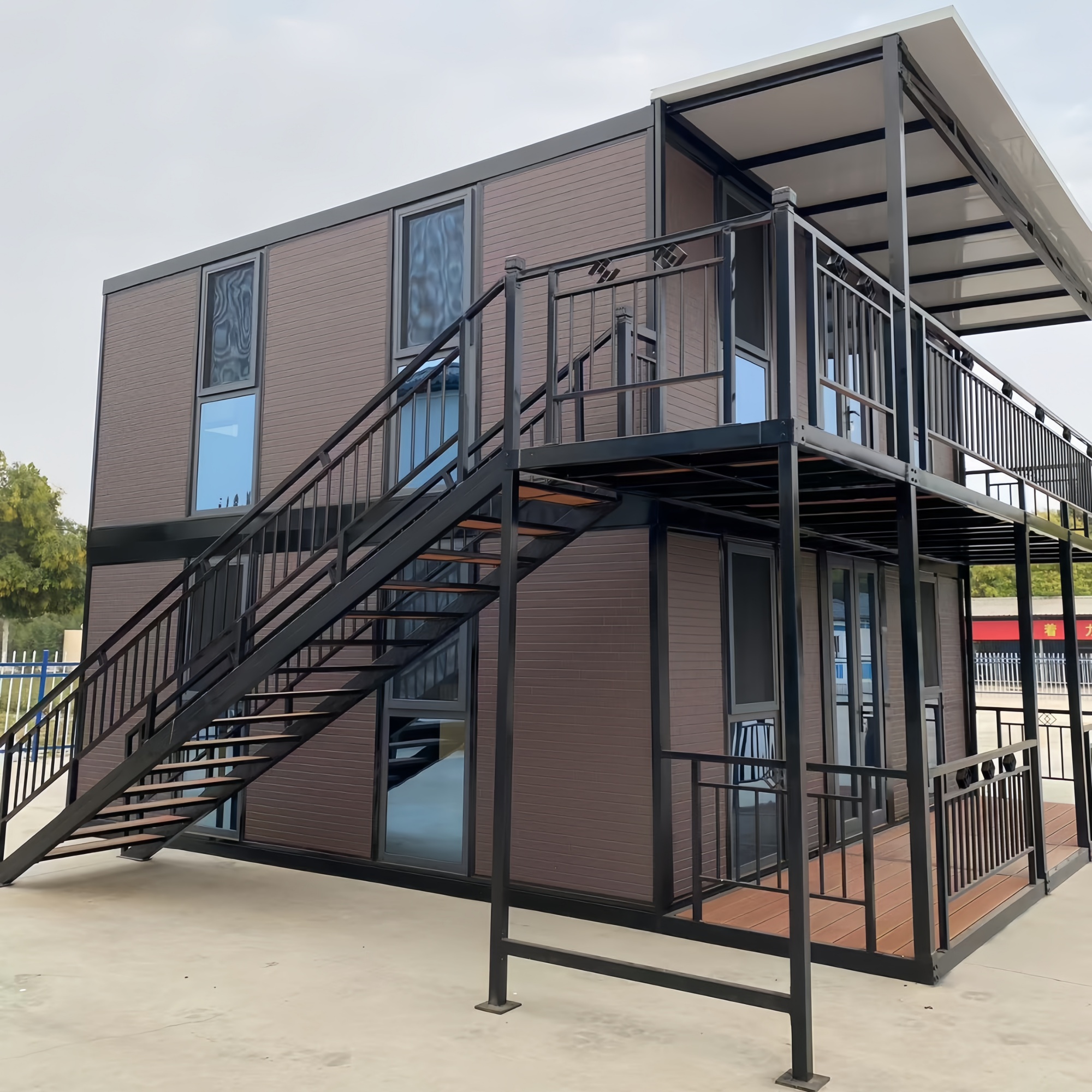

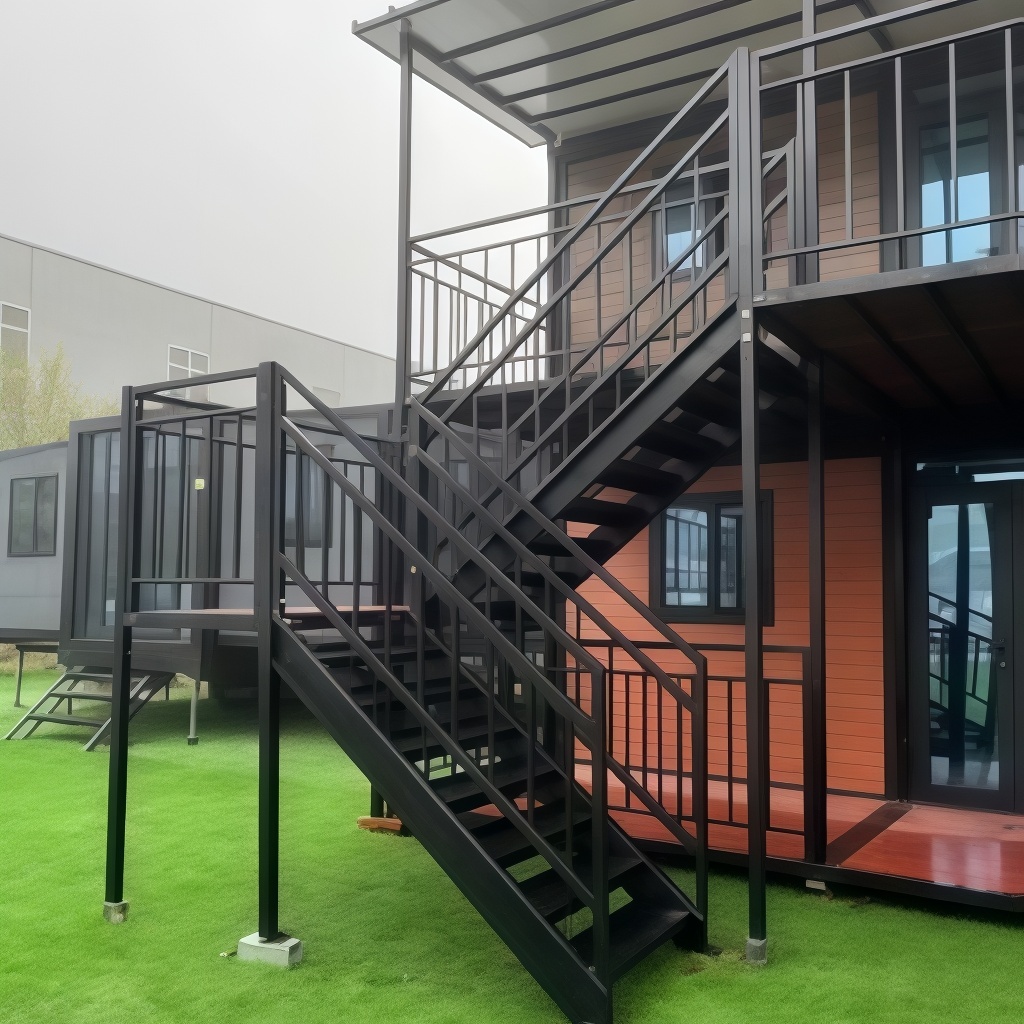

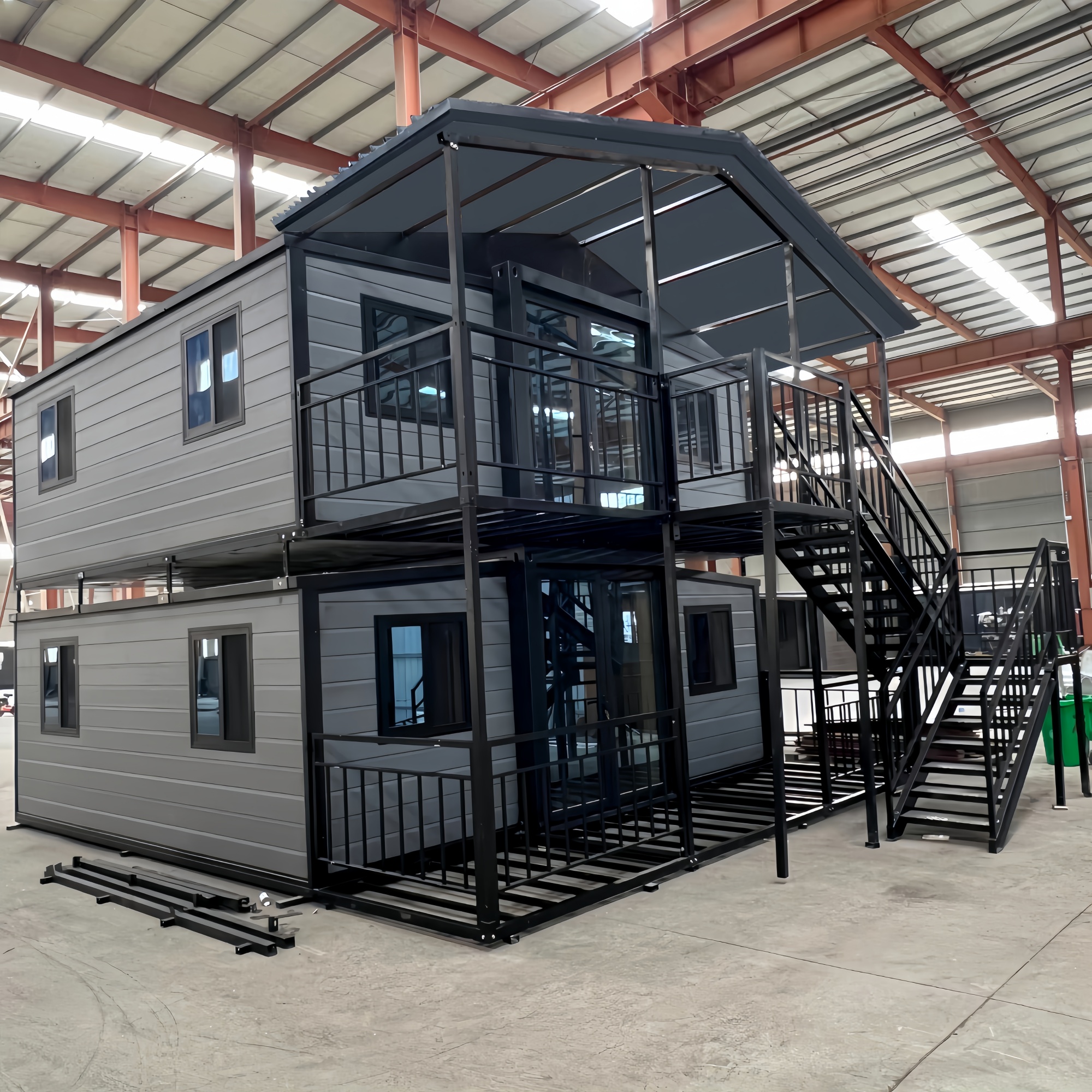

Luxury 2-4 Bedroom Two Story 10ft 40ft Expandable Folding Tiny Container Prefabricated House with Wheels

Product Description

Luxury 2-4 Bedroom Two Story 10ft 40ft Expandable Folding Tiny Container Prefabricated House with Wheels

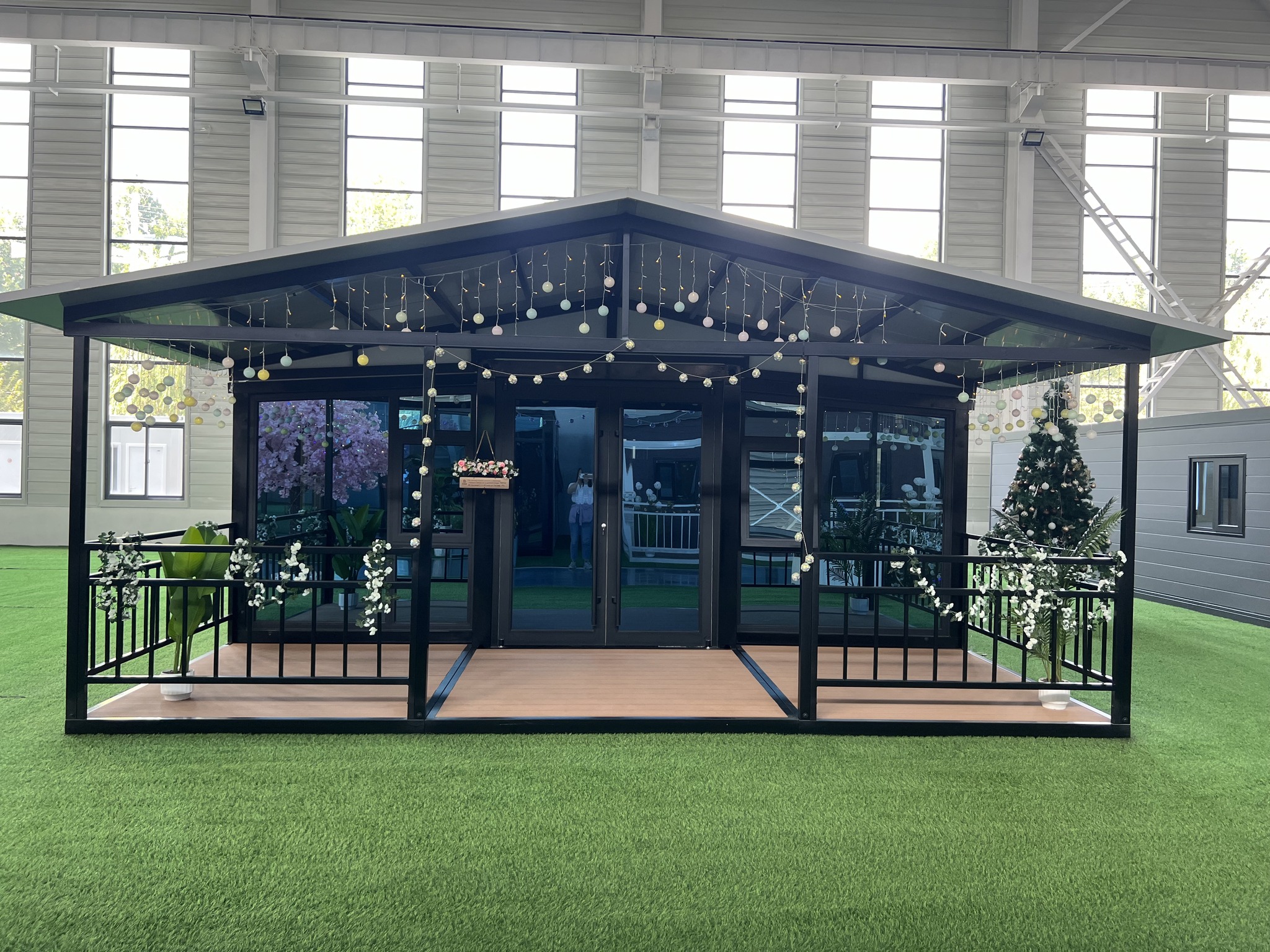

Luxury Expandable Container House
The Double-Wing Expandable house utilizes a lightweight steel hot-dip galvanized frame as its structural support, ensuring overall structural stability and safety. The frame is fully coated with high-temperature static spray paint, and the exterior is covered with environmentally friendly composite material wall panels, offering excellent thermal insulation, heat insulation, and soundproofing performance. The Double-Wing Expandable house can be flexibly extended and retracted, effectively increasing usable space while minimizing ground space occupation. The entire modular housing unit has an earthquake resistance rating of 8 and wind resistance of 10, with a service life of up to 20 years. The Double-Wing Prefab Expandable House Unit is durable, has strong load-bearing capacity, high space utilization, is movable and transportable, has excellent thermal insulation properties, can maintain indoor temperature for extended periods, is moisture-proof, dust-proof, corrosion-resistant, recyclable, energy-efficient, and environmentally friendly, with customizable dimensions and colors. The double-wing expandable house structure gives the unit a unique appearance and spatial layout. The double-wing expandable increases the usable indoor space, creating a larger living area. It can be quickly assembled and disassembled, making it convenient for relocation to different locations. Whether for outdoor adventures, camping, or emergency rescue, the double-wing expandable housing provides a convenient living solution.

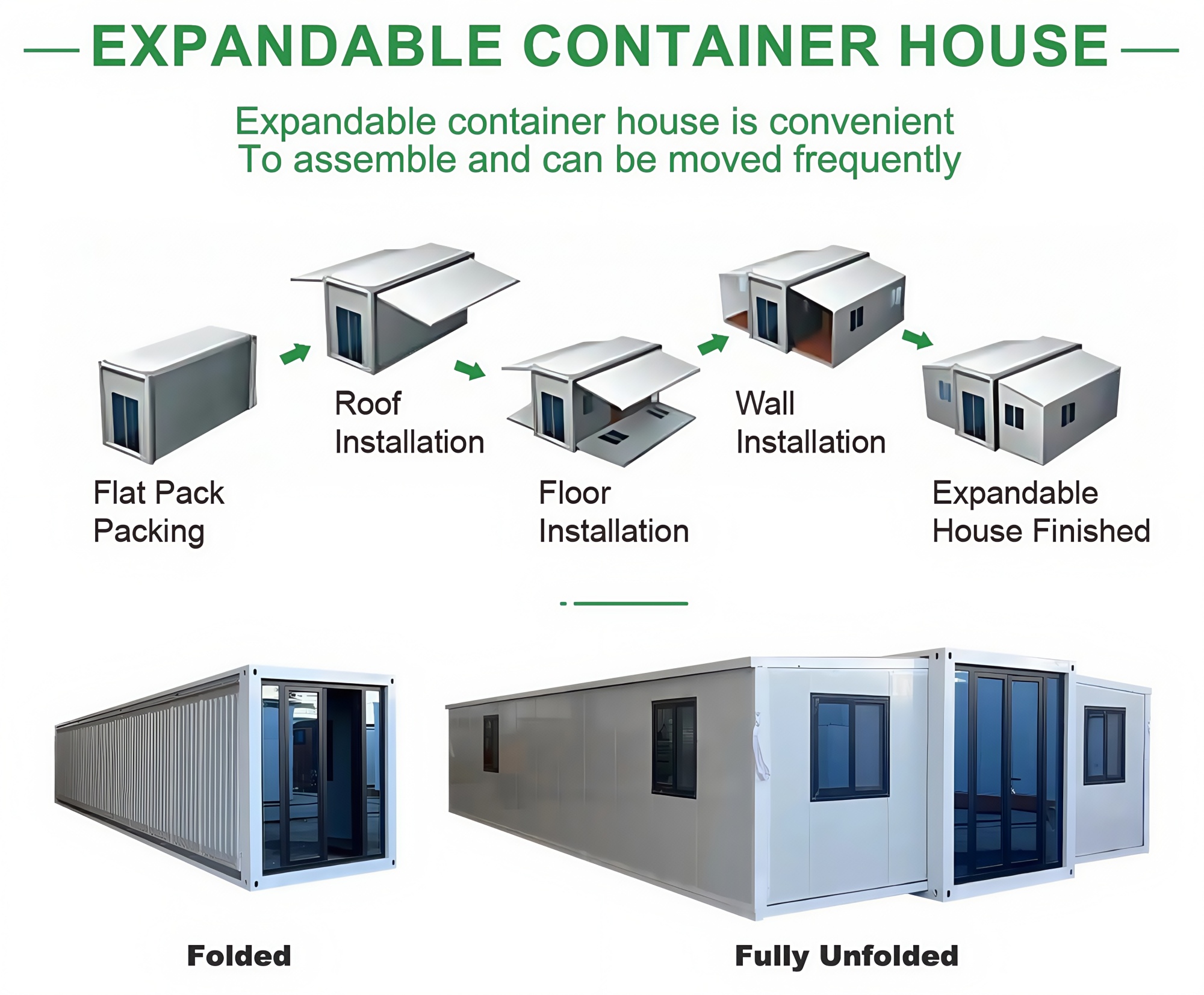

Expandable Tiny Container Structure
Product Specifications
Parameter Specification Details
Product Name Expandable Container House
10FT External Size External: 2950*6300*2480mm | Folded Standard Size: 2950*2200*2480mm
15FT External Size External: 3880*6480*2480mm | Folded Standard Size: 3880*2200*2480mm
20FT External Size External: 5900*6300*2480mm | Folded Standard Size: 5900*2200*2480mm
30FT External Size External: 9000*6220*2480mm | Folded Standard Size: 9000*2200*2480mm
40FT External Size External: 11800*6220*2480mm | Folded Standard Size: 11800*2200*2480mm
Main Material Galvanized steel structure with sandwich panel walls, doors, windows, etc.
Steel Structure 3mm hot-dip galvanized steel structure with 4 corner castings and 18mm fiber cement panels; 2.0mm PVC flooring; 50mm Rock Wool, EPS, PU sandwich panels; Galvanized steel base plate.
Roof 3-4mm hot-dip galvanized steel structure with 4 corner castings and 50mm-75mm EPS or PU sandwich panels; galvanized steel roof covering.
Wall 50mm/75mm/100mm Rock Wool, EPS, PU sandwich panels.
Door Made of steel/aluminum frame, broken bridge aluminum. Size W 1930mm * H 2100mm, glass double glazing, thickness 5/8/5mm. Can be customized according to needs.
Window Made of PVC/aluminium, broken bridge aluminum. Dimensions W 1125mm * H 1100mm / W 800mm * H 1100mm, double-glazed glass, thickness 5/8/5mm.
Connection Kit PVC connection kit for floors, ceilings, walls.
Electricity 3C/CE/CL/SAA standard, with distribution box, lights, switches, sockets, etc.
Optional Accessories Air conditioners, offices, dormitories, toilets, kitchens, bathrooms, showers, steel roofs, accommodation appliances, decorative panels, decorative materials, furniture, sanitation, etc.
Core Advantages 1. Large space, large-sized windows and doors. 20 feet and 40 feet are available, and can also be customized.
2. Installation is simple and quick, 4 hours/set, saving labor costs.
3. Prefabricated water, electricity and bathroom accessories.
4. Integrated design of waterproof wall panels.

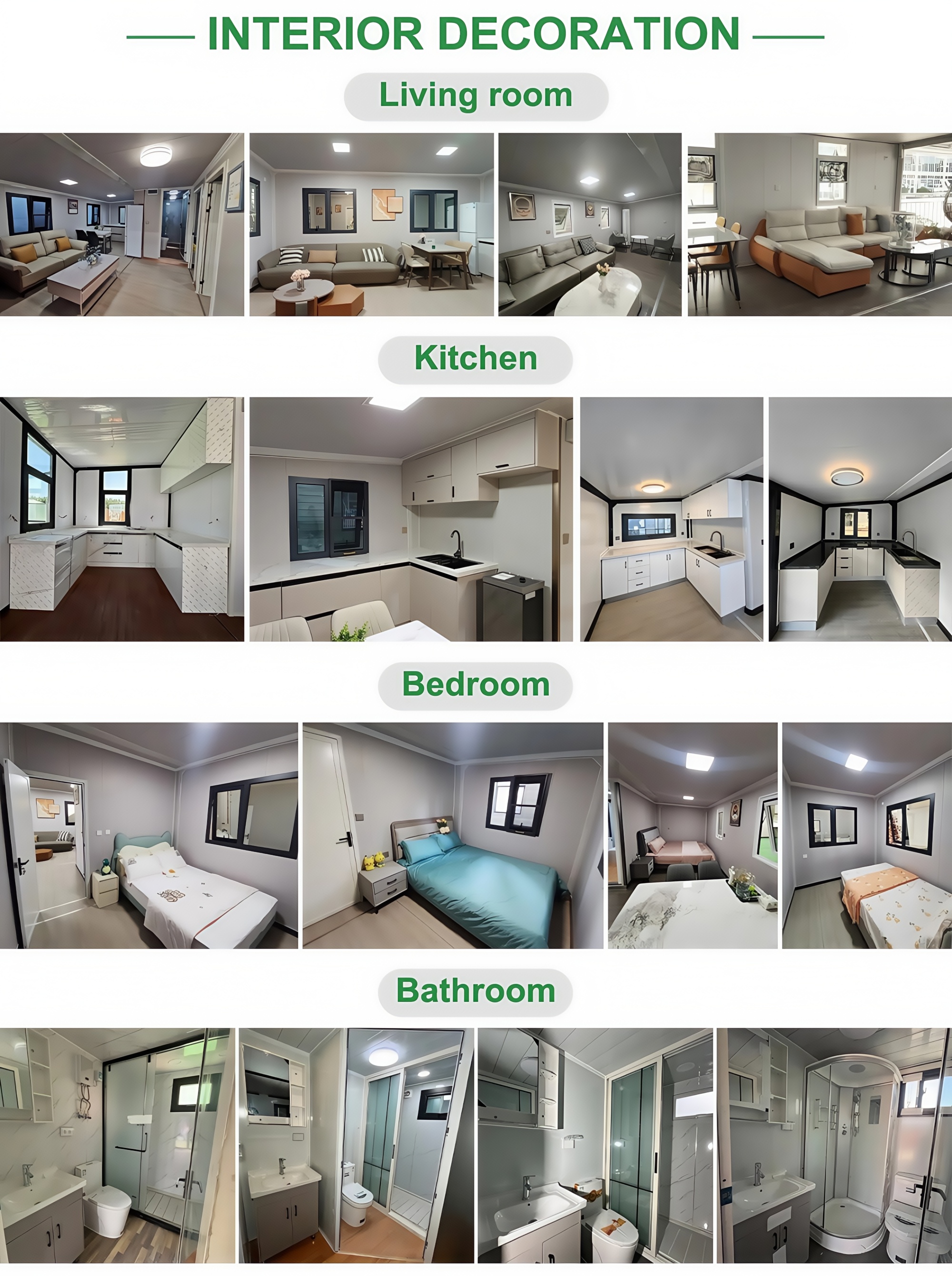

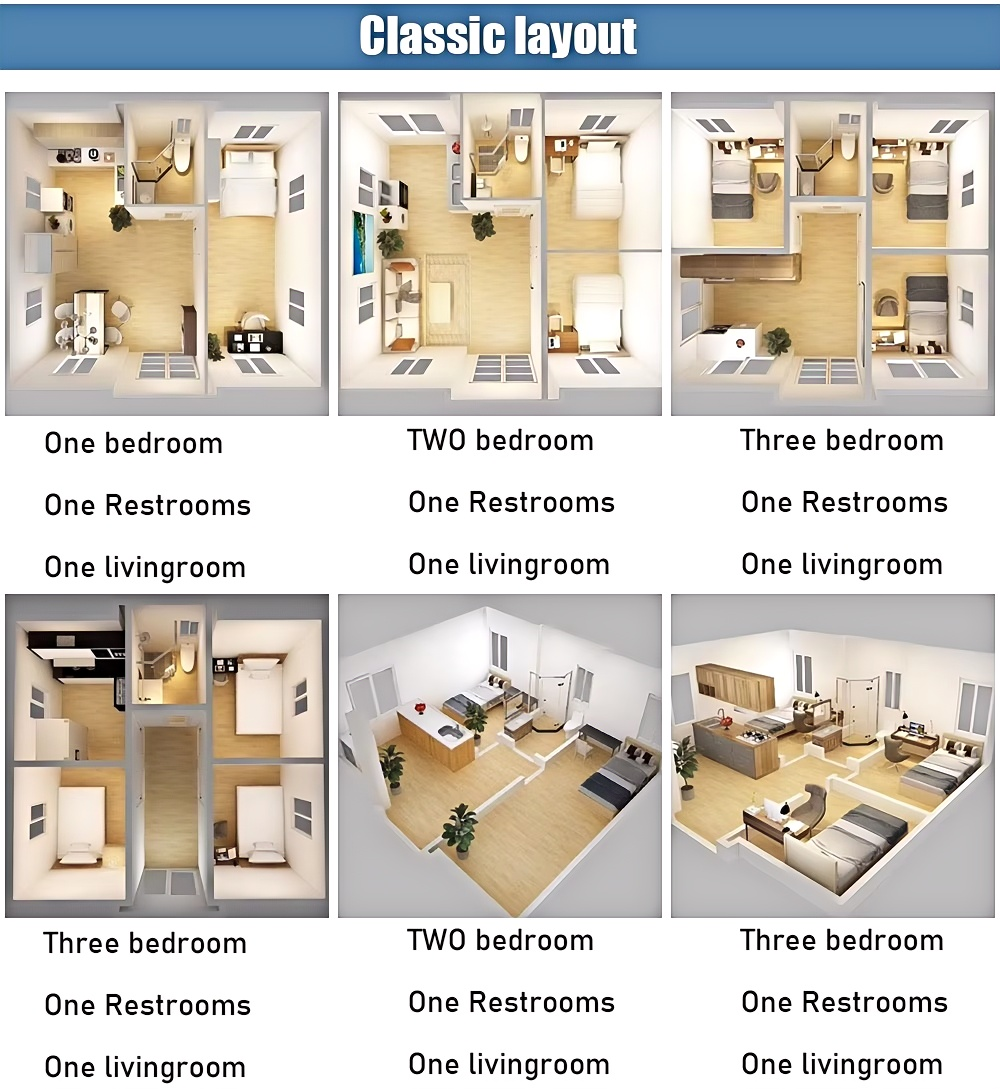

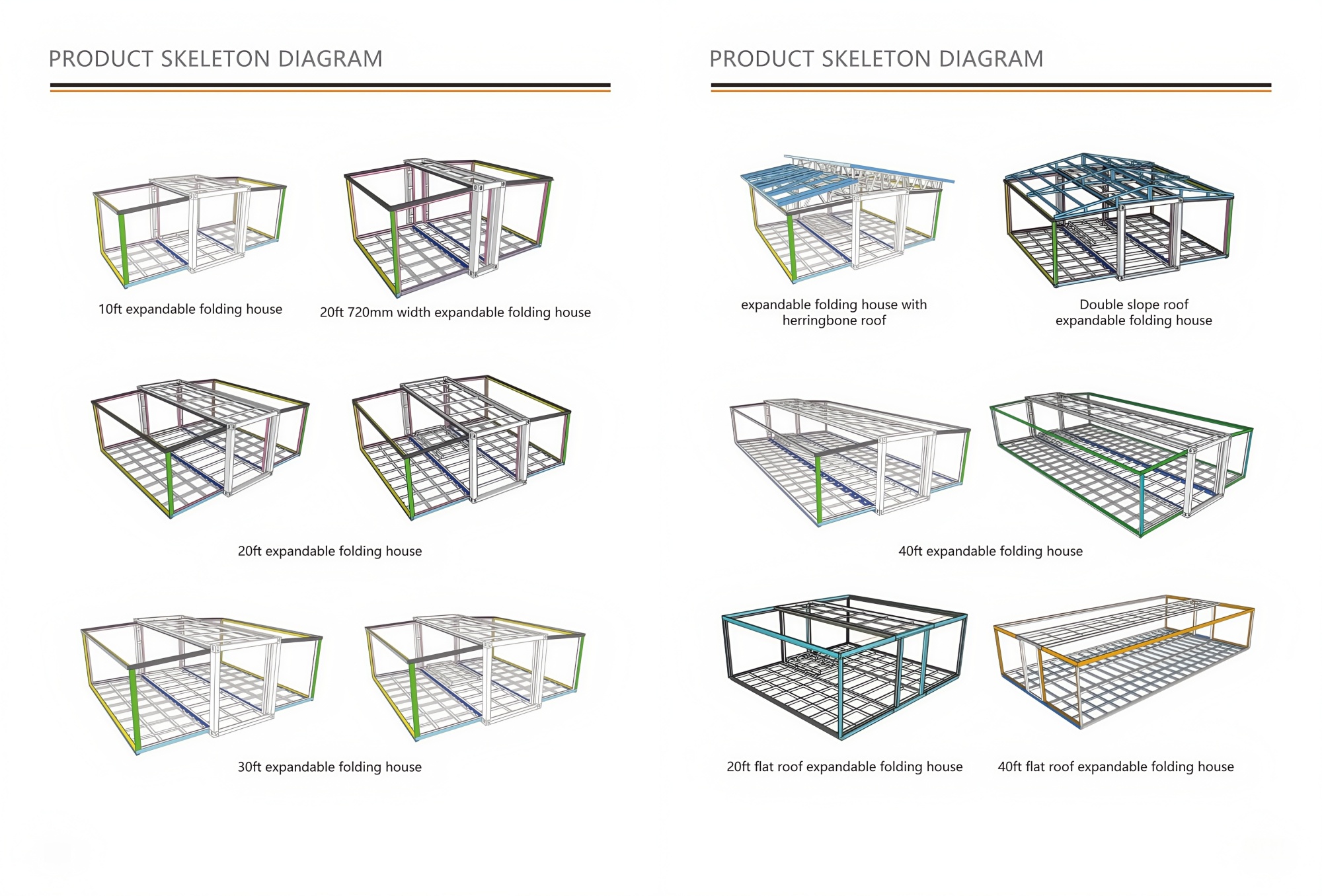

Prefabricated House Layout Prefabricated House Assembly Diagram Interior Construction View Foundation and Support View
Products Display

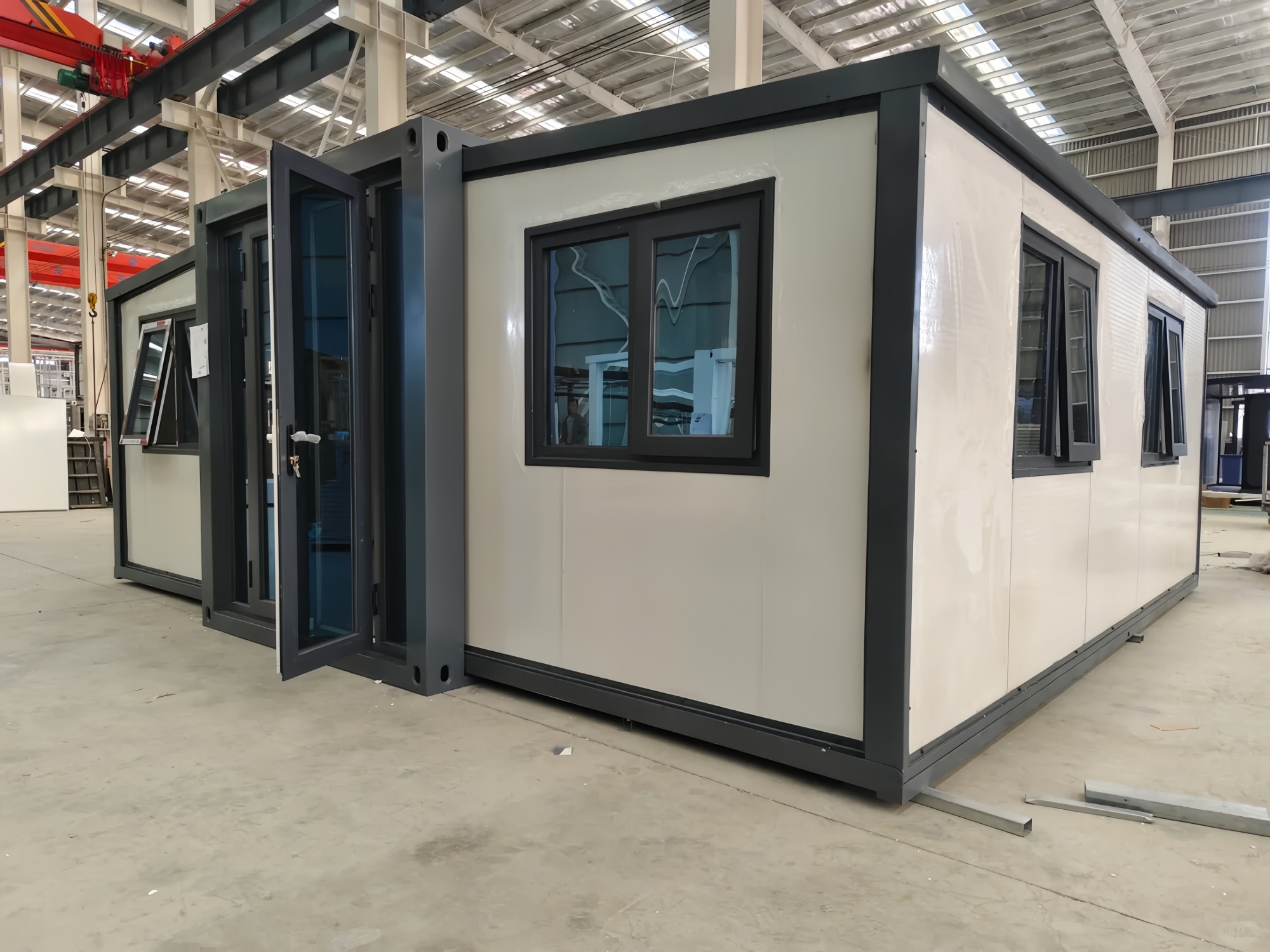

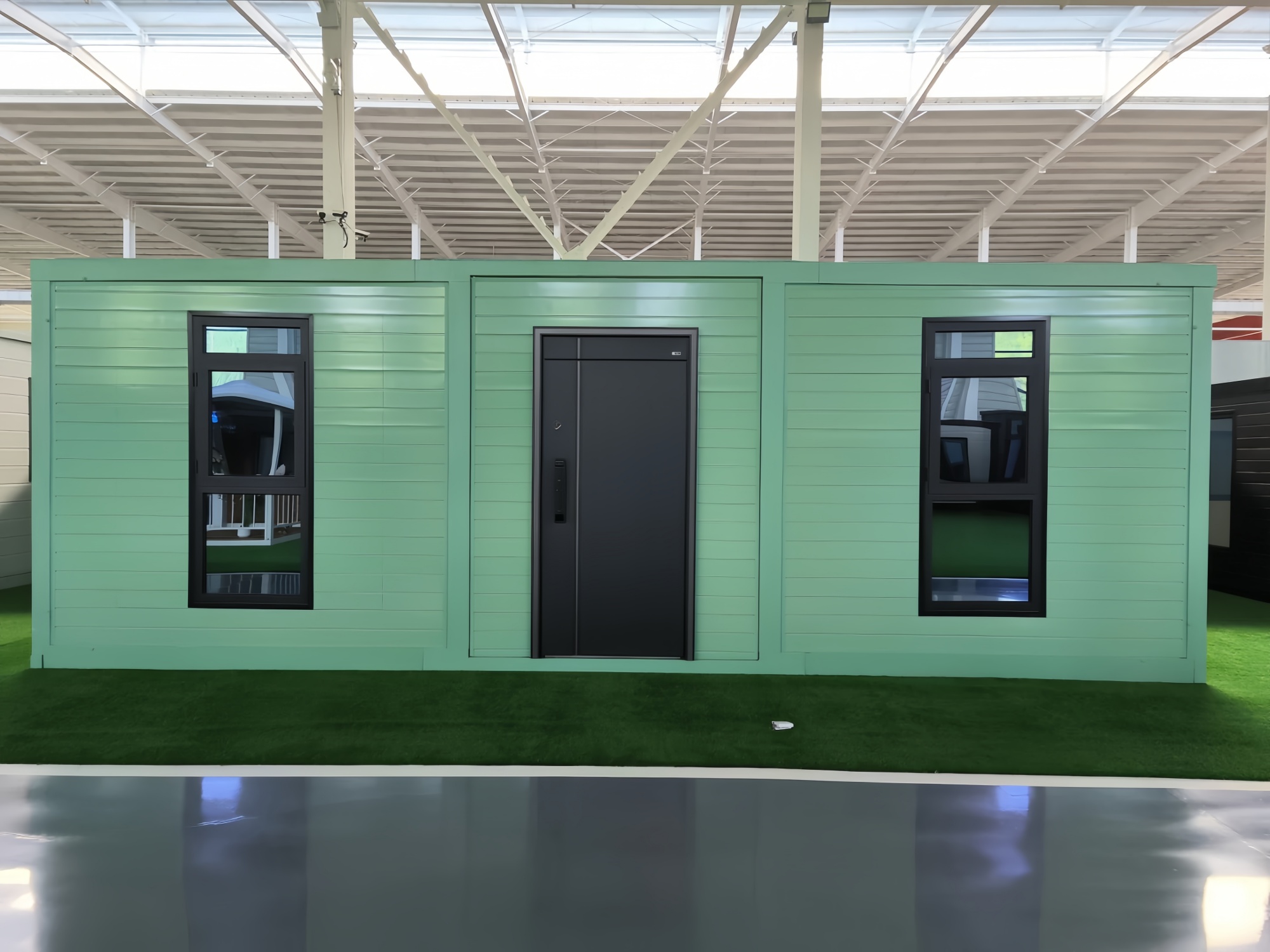

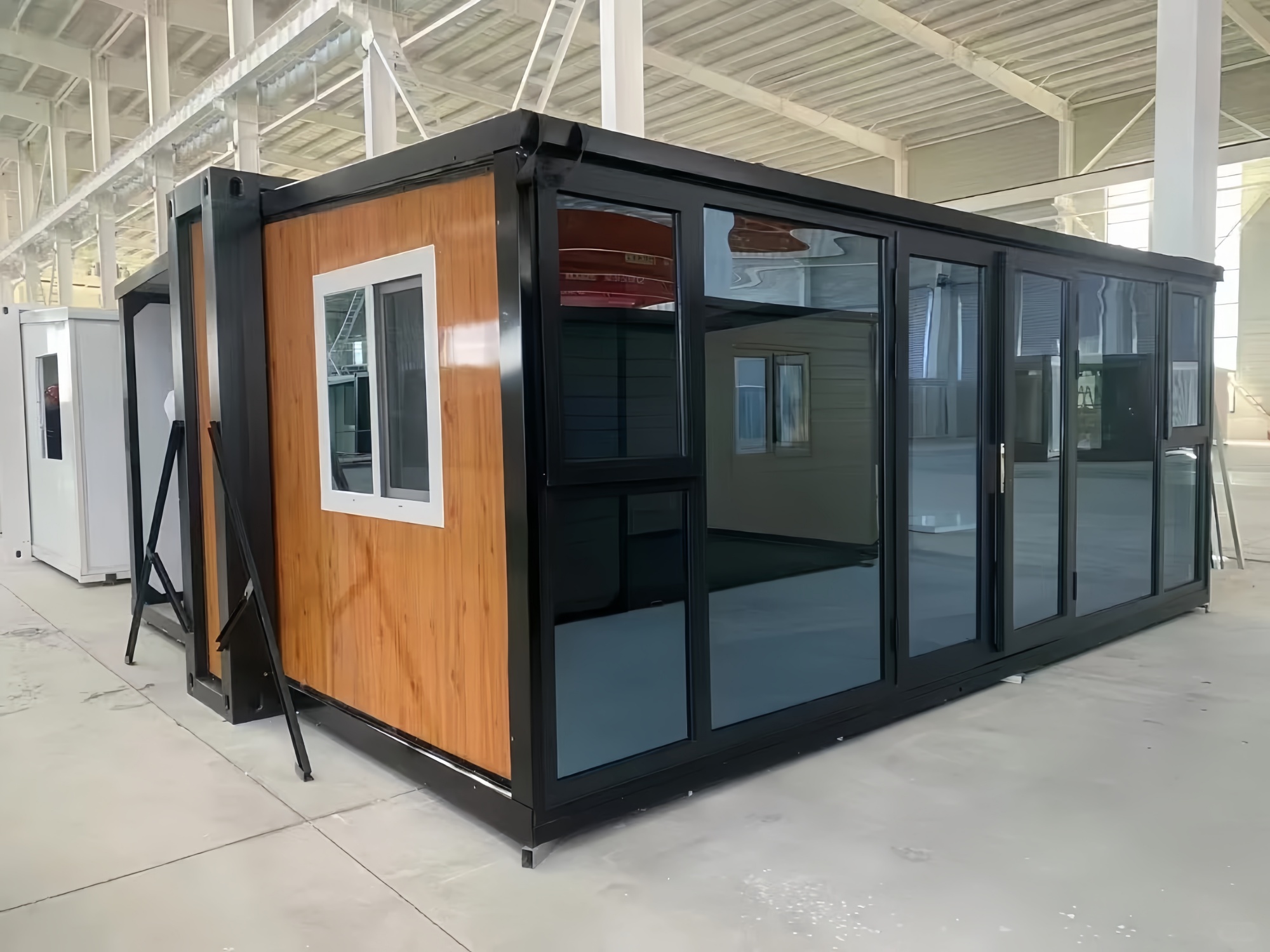

Product Display 1 Product Display 2 Product Display 3

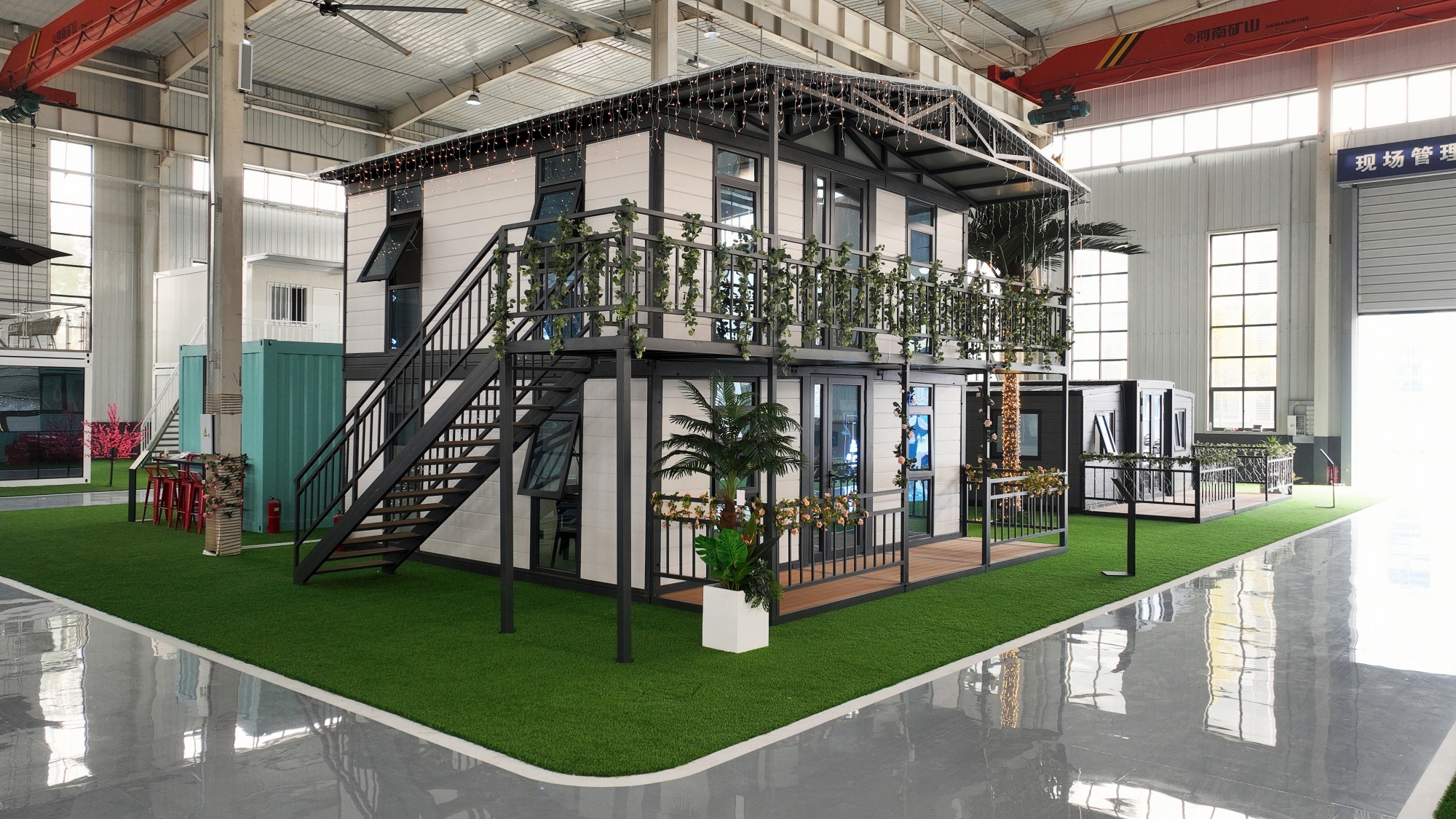

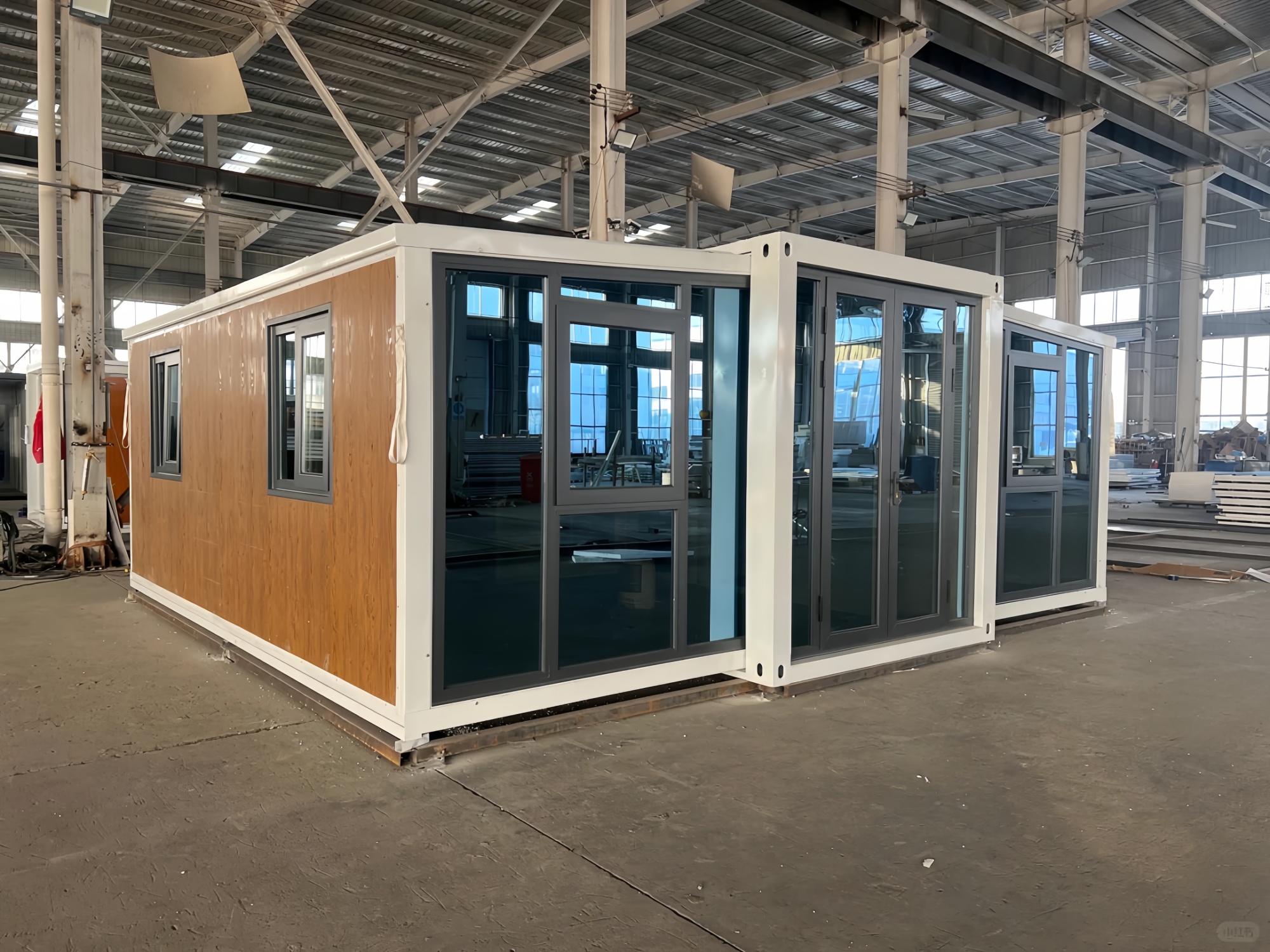

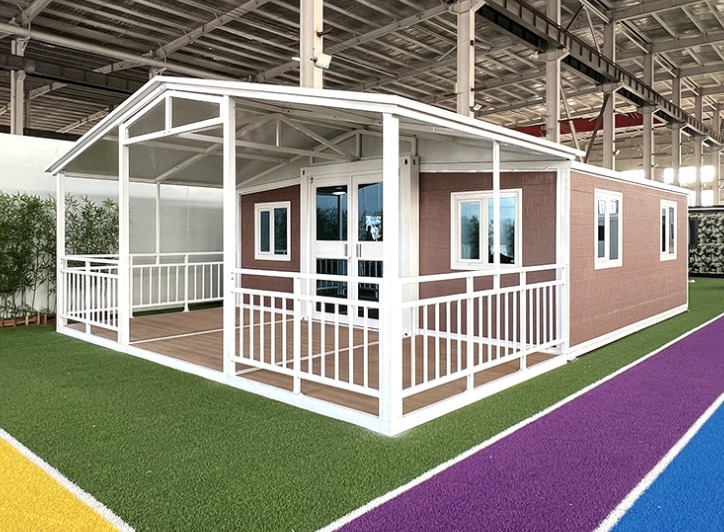

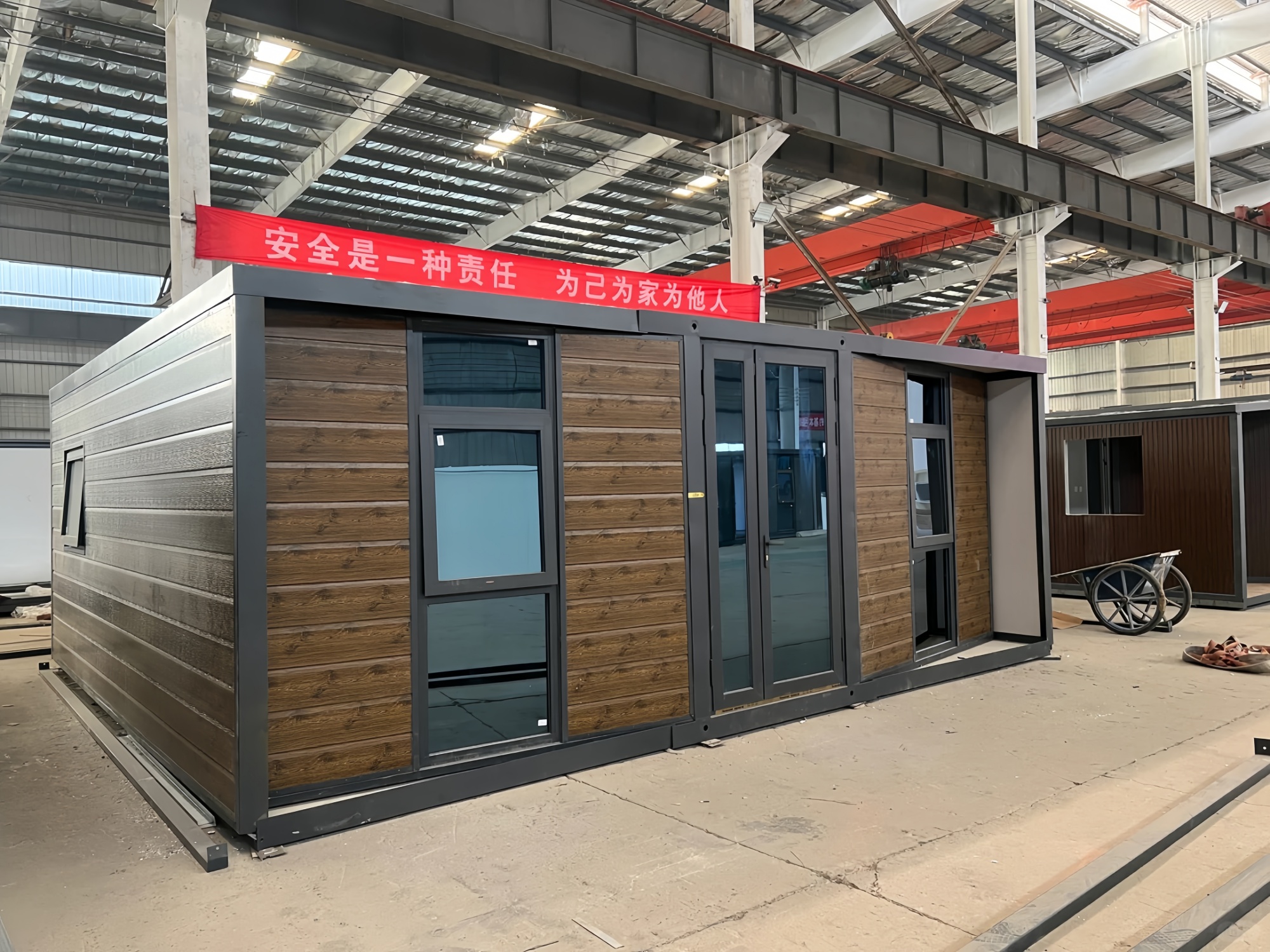

Product Display 4 Product Display 5 Product Display 6 Product Display 7
If you want to choose more styles or customized, contact us!
Packing & Delivery

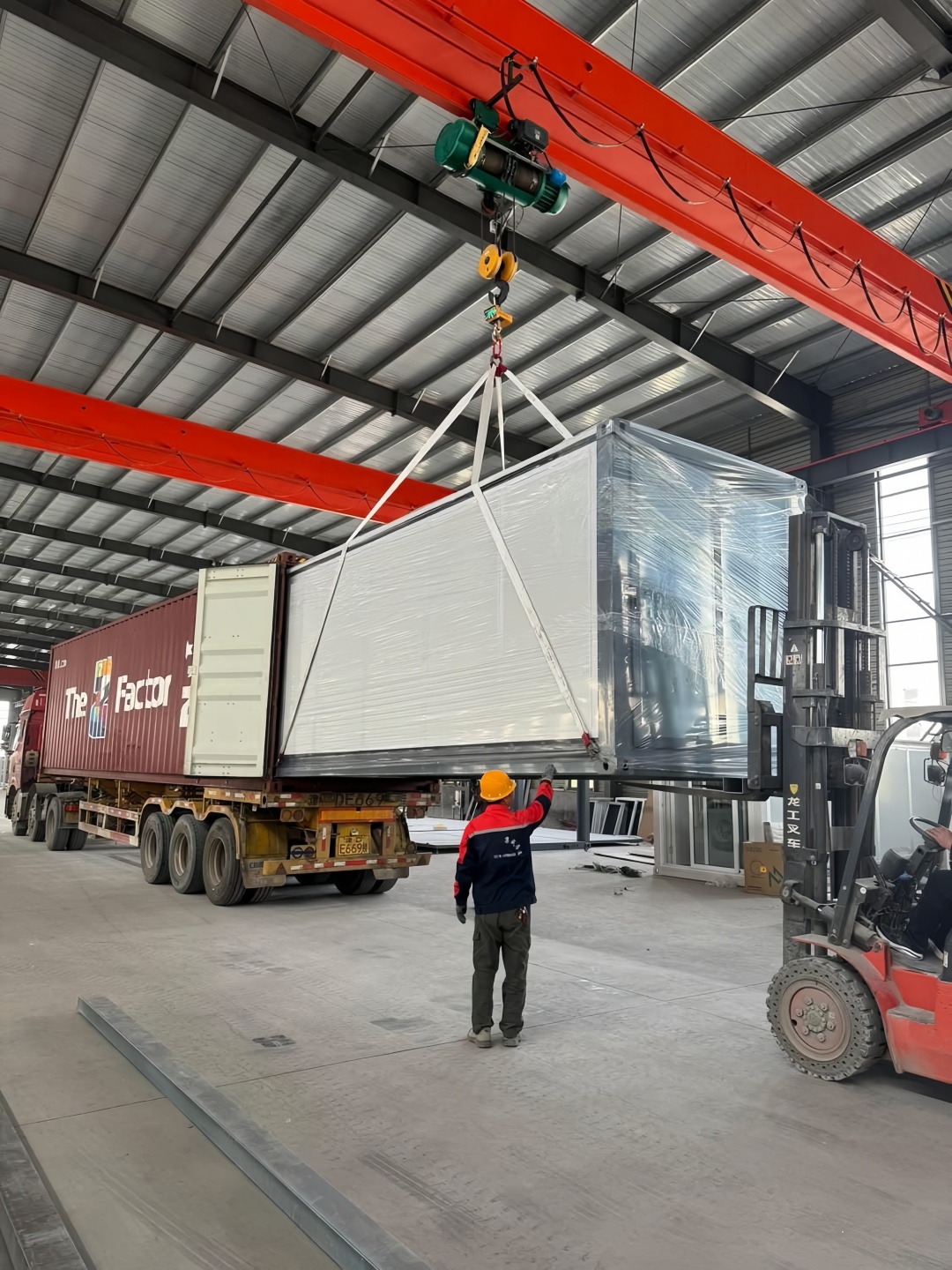

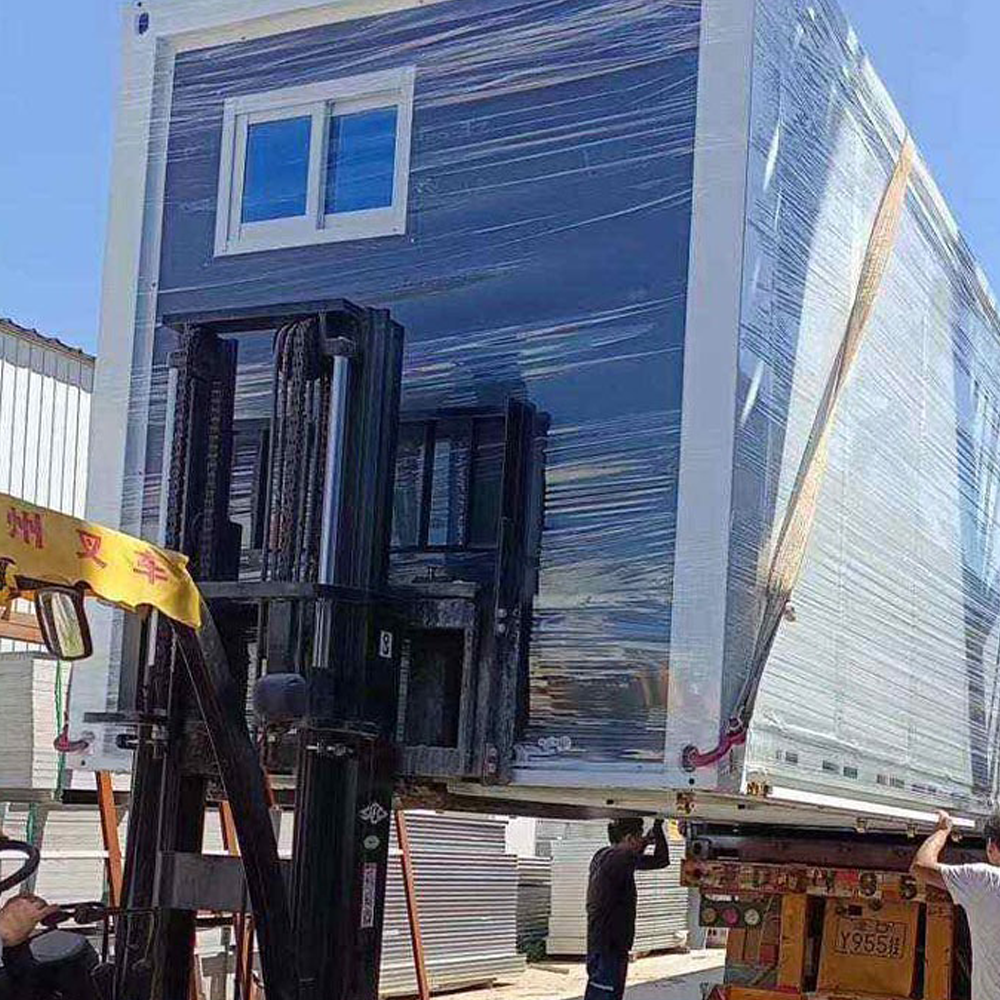

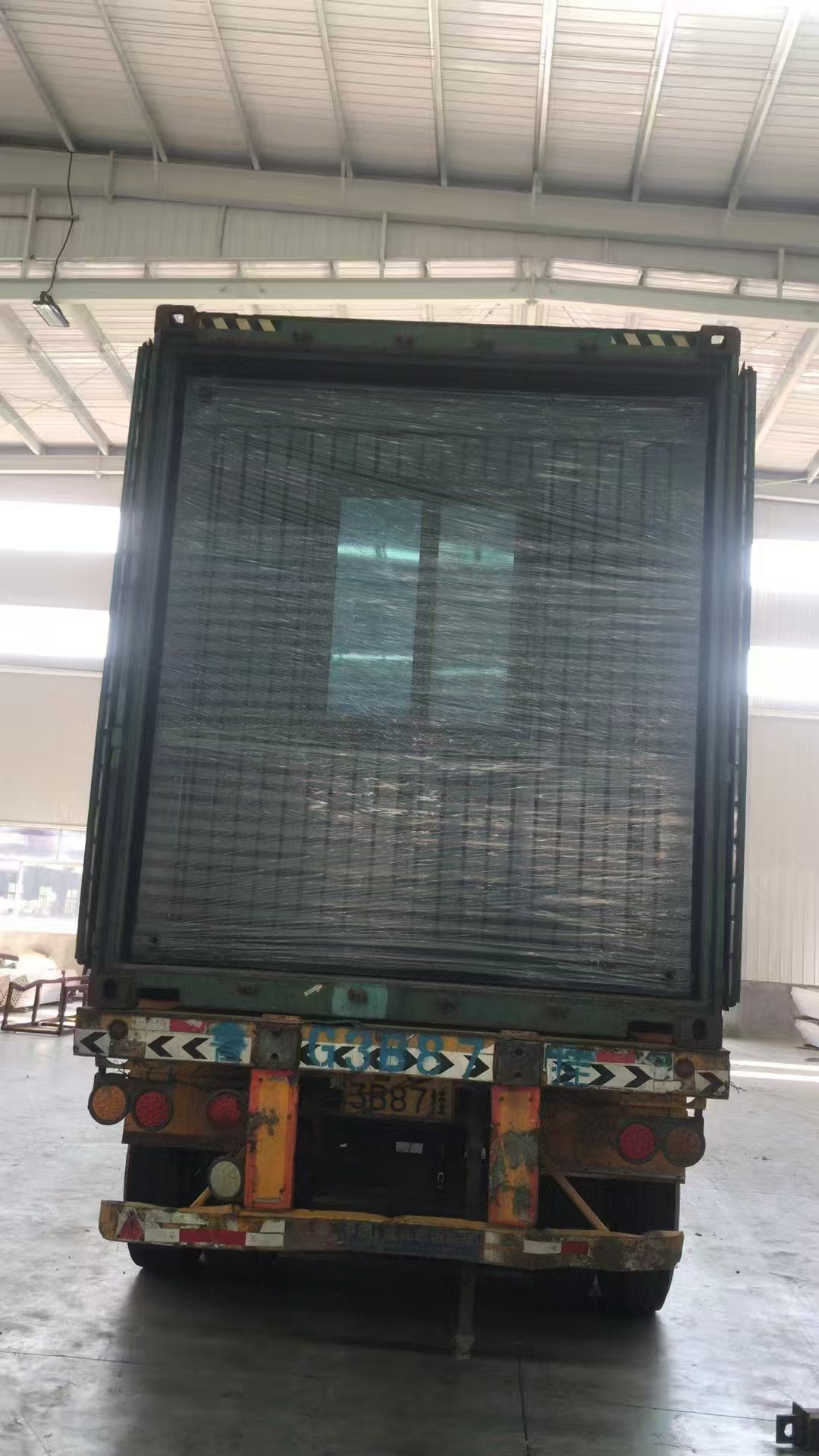

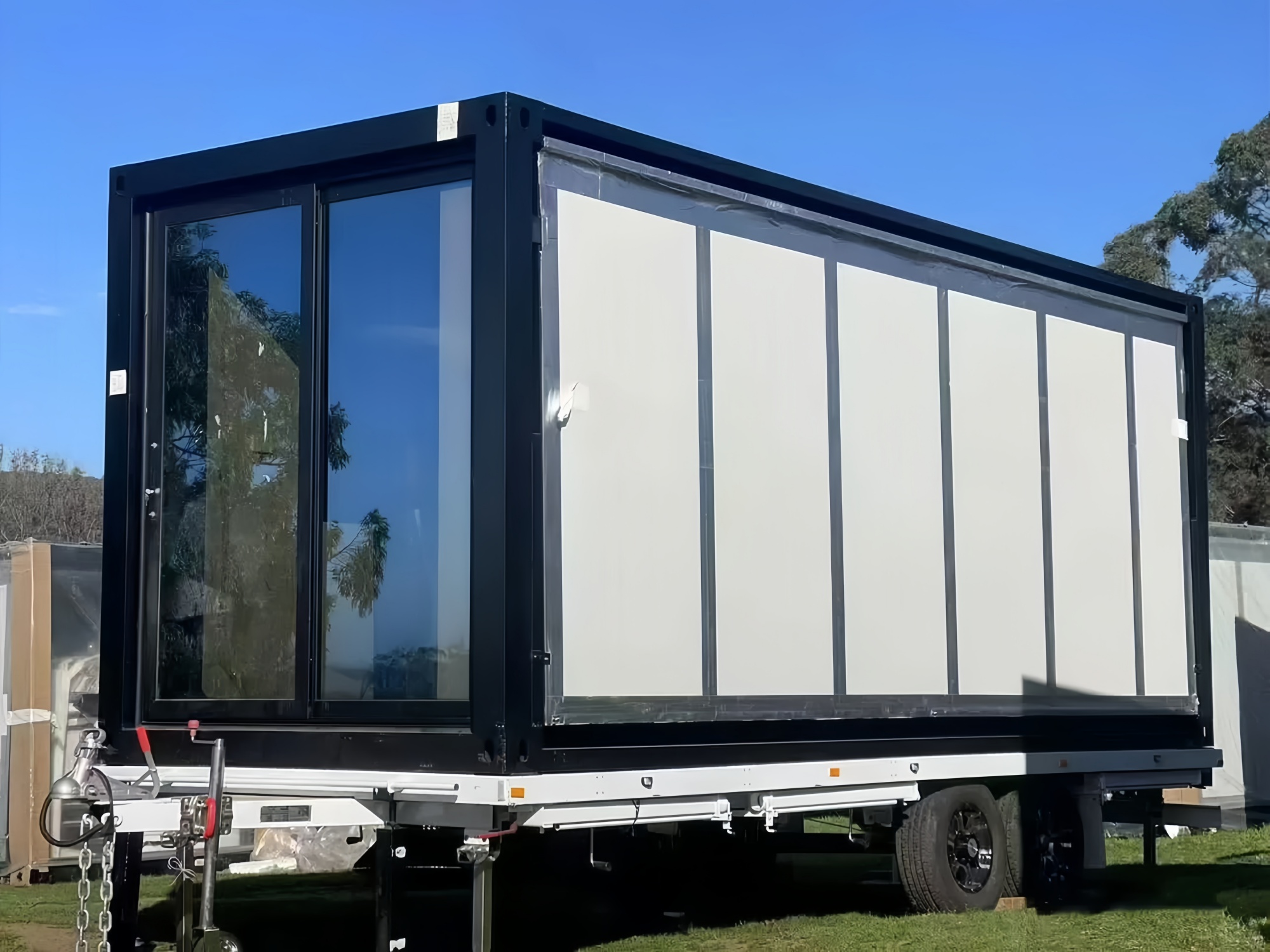

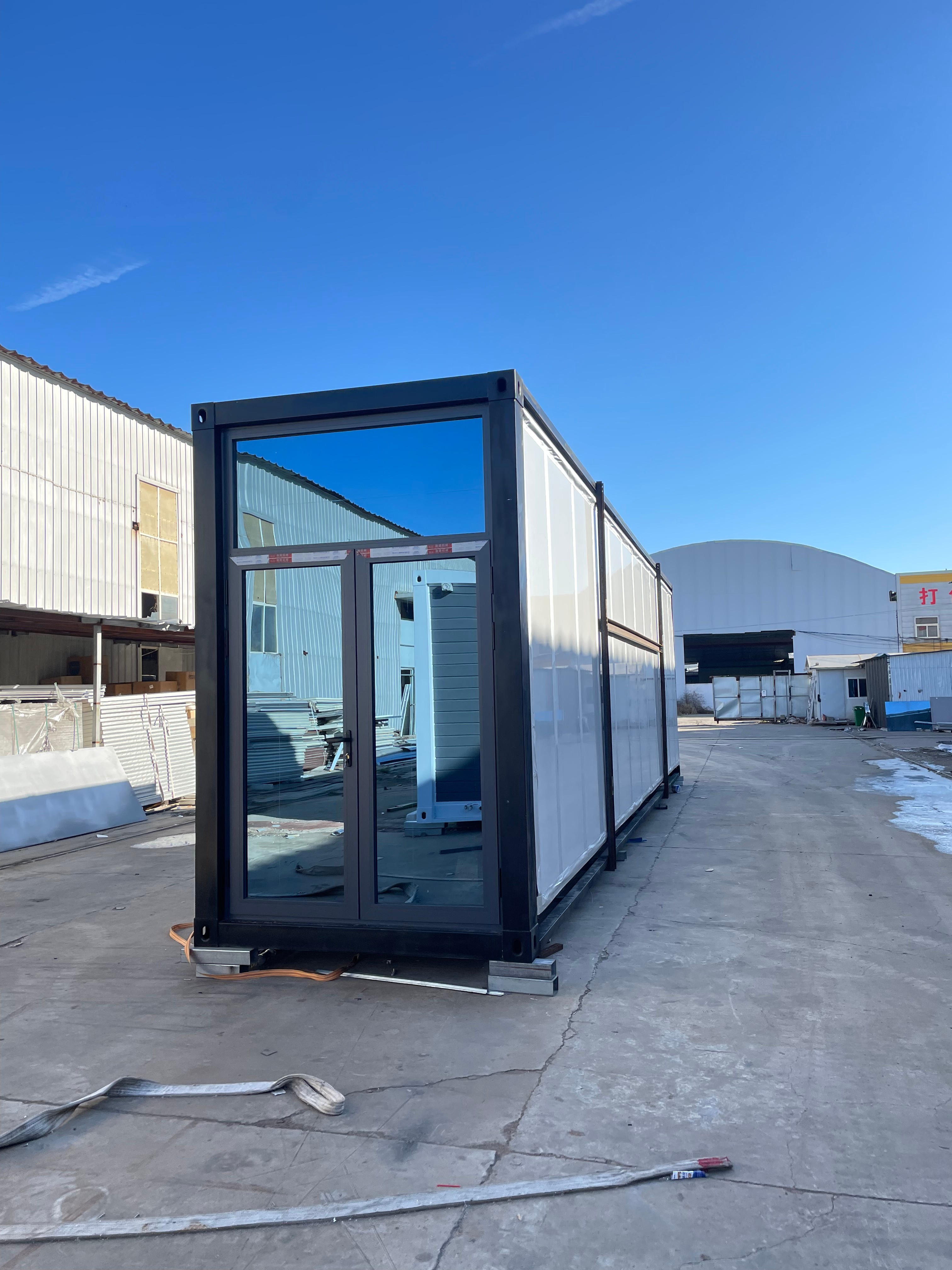

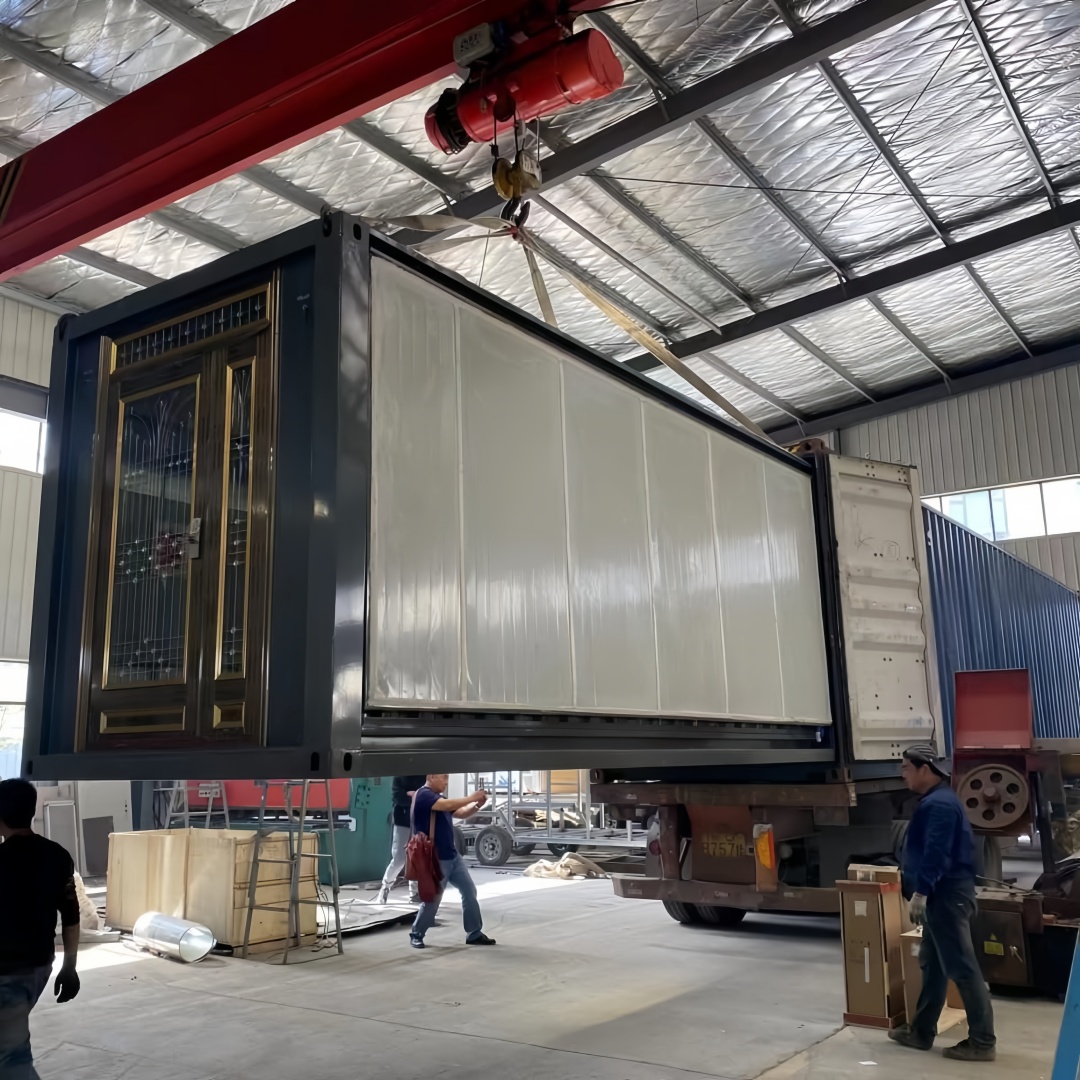

Packing Process 1 Packing Process 2 Packing Process 3 Delivery Loading 1 Delivery Loading 2 Delivery Plan Design Shipping Logistics 1 Logistics Flow Chart Logistics Parameters
Final Transportation Set
Frequently Asked Questions
Q What is your market scope and team scale?
Operating since 2015, we serve domestic and global markets including North America, South America, Eastern Asia, Africa, Mid East, Western Europe, Northern Europe, Southern Europe, Oceania, Southeast Asia, South Asia, and Eastern Europe. Our team consists of approximately 11 to 50 professionals.
Q What types of products do you offer?
We specialize in prefabricated labor camps, steel structures, container houses, and modular villas.
Q What are your accepted payment terms?
Our standard payment terms are TT (Telegraphic Transfer) and L/C (Letter of Credit).
Q What is the minimum order quantity (MOQ)?
Our minimum order quantity is 200 square meters.
Q What kind of after-sales and installation support do you provide?
1. We provide 24-hour customer support for any questions.
2. A dedicated representative is assigned to follow the entire production flow for each order.
3. For construction and installation, we provide detailed 3D installation drawings. If needed, an engineer can be sent to train your workers (costs for round-trip tickets, accommodation, food, and salary are charged to the client).
Q What information should be provided to request a quote?
If you have existing structural drawings, please share them with us along with your material requirements. If you do not have drawings, please let us know the intended use and size of the house, and we will create a custom design and offer a optimized price plan.
